  5. greenteQ Door hinge TB 120.ZD.K 19.5-22.5 P VD gold polished

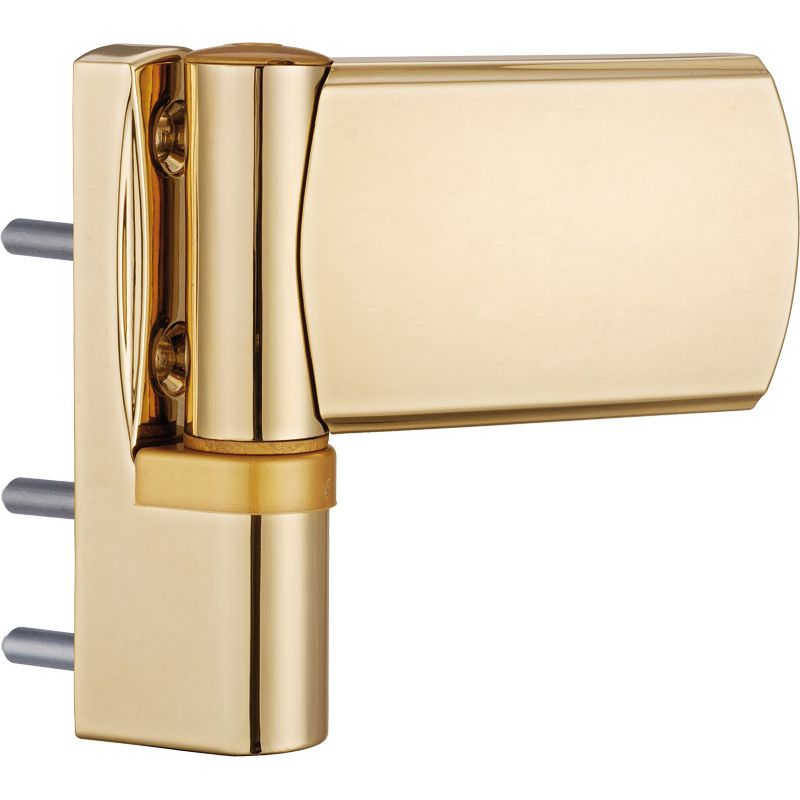

greenteQ Door hinge TB 120.ZD.K 19.5-22.5 P VD gold polished product photo BIGPIC L

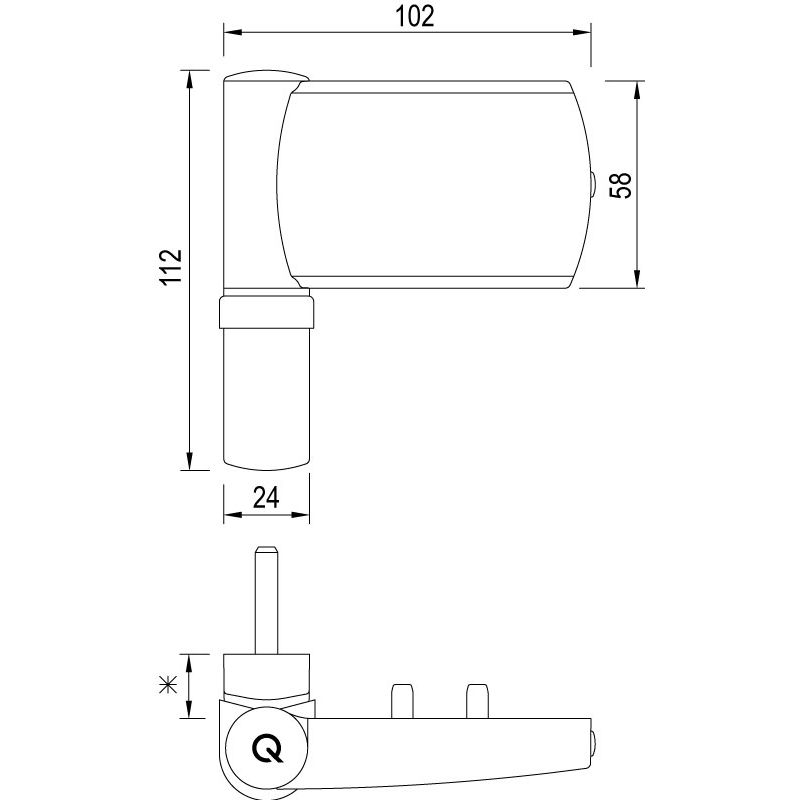

greenteQ Door hinge TB 120.ZD.K 19.5-22.5 P VD gold polished product photo BIGSKZ L
greenteQ Door hinge TB 120.ZD.K 19.5-22.5 P VD gold polished product photo BIGPIC L
greenteQ Door hinge TB 120.ZD.K 19.5-22.5 P VD gold polished product photo BIGSKZ L

greenteQ Door hinge TB 120.ZD.K 19.5-22.5 P VD gold polishedgreenteQ Door hinge TB 120.ZD.K 19.5-22.5 P VD gold polished

Product ID:3994127110
Rebate thickness Screw-on door hinge
16.5 - 19.5 mm 19,5 - 22,5 mm 22,5 - 25,5 mm
EACH
Packaging unit: 1ST
greenteQ Door hinge TB 120.ZD.K 19.5-22.5 P VD gold polished
Manufacturer information:VBH Holding GmbH, Siemensstraße 38,DE70825, Korntal-Münchingen, Email: info@vbh.de
Adjustment option:
6-fold
Band height:
112 mm
direction:
DIN left/right
Door weight max.:
120 kg
Frame design:
Plastic
Hinge base width:
24 mm
Hinge type:
2-piece
Pin lock:
✓
PU:
1 Stk.
Rebate thickness Screw-on door hinge:
19,5 - 22,5 mm
Roller Ø:
24 mm
Sash design:
Plastic
Type:
Screw-on tape
