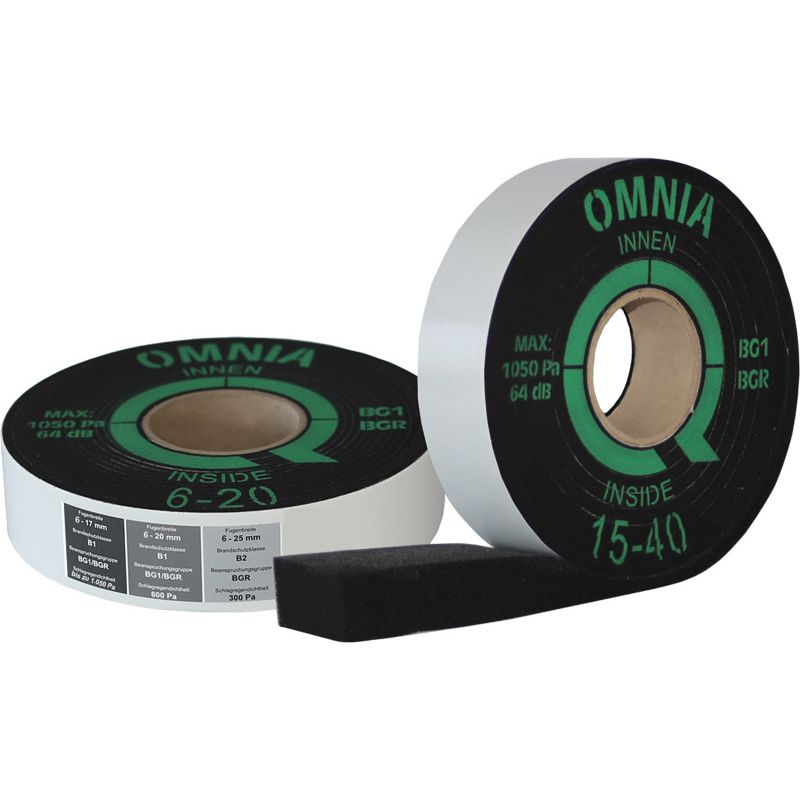

GreenteQ Band OMNIA BG1, 83/15-40 product photo BIGPIC L
GreenteQ Band OMNIA BG1, 83/15-40 product photo BIGANW L
GreenteQ Band OMNIA BG1, 83/15-40 product photo BIGPIC L
GreenteQ Band OMNIA BG1, 83/15-40 product photo BIGANW L

GreenteQ Band OMNIA BG1, 83/15-40GreenteQ Band OMNIA BG1, 83/15-40

Product ID:2172722410
Globina vgradnje okna
60 mm - available in other combination 70 mm - available in other combination 80 mm - available in other combination 90 mm
Globina spoja
60 mm - available in other combination 70 mm - available in other combination 80 mm - available in other combination 90 mm
Širina spoja BG 1
6 - 20 mm - available in other combination 15 - 32 mm
Širina spoja BG 2
6 - 25 mm - available in other combination 15 - 45 mm
metri
Packaging unit: 20metri
GreenteQ Band OMNIA BG1, 83/15-40
VBH Holding GmbH, Siemensstraße 38,DE 70825, Korntal-Münchingen, Email: info@vbh.de
BG 1 v skladu z DIN 18542 izpolnjeno:
✓
BG 2 v skladu z DIN 18542 izpolnjeno:
✓
BG R v skladu z DIN 18542:
✓
DIN 4102-1: Požarna odpornost:
B1 (zaviralec gorenja)
DIN 4109: Indeks zmanjšanja hrupa Rw:
64 dB
DIN EN 1027: Vodotesnost proti dežju:
1050 Pa
DIN EN ISO 12572: Odpornost proti difuziji vodne pare (µ):
100
Emisijski test:
EMICODE EC1 PLUS
Globina spoja:
90 mm
Globina vgradnje okna:
90 mm
Osnovni material:
Poliuretan (PUR)
Širina spoja BG 1:
15 - 32 mm
Širina spoja BG 2:
15 - 45 mm
Temperaturna odpornost:
-30 - +80 °C
Tip:
Večnamenski trak
Toplotna prevodnost ? max.:
0,05 W/(m*K)
