  5. greenteQ Door hinge TB 120.ZD.K 16.5-19.5 p erlgold/1036

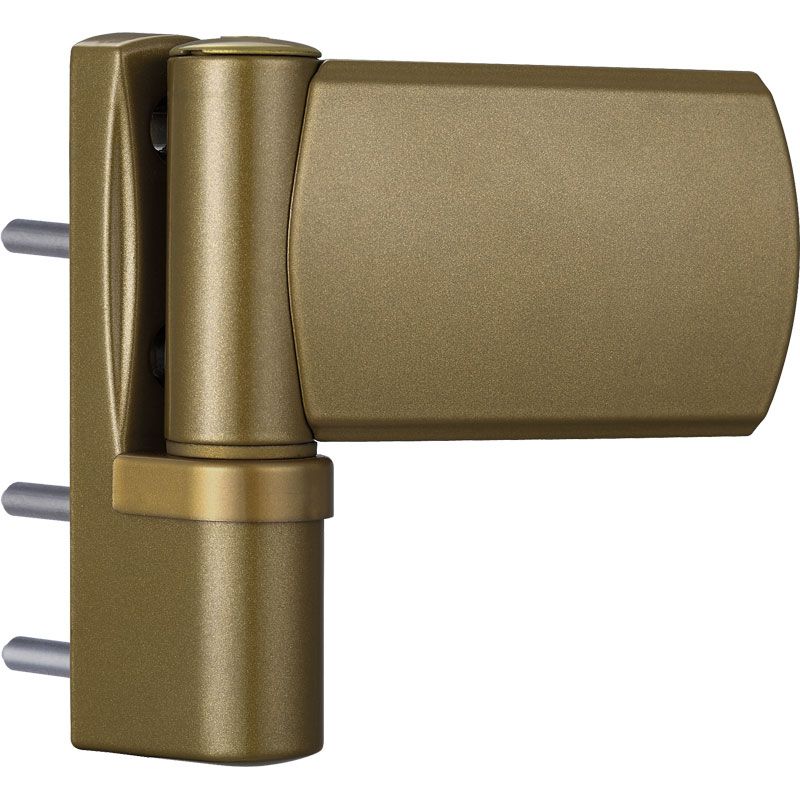

greenteQ Door hinge TB 120.ZD.K 16.5-19.5 p erlgold/1036 product photo BIGPIC L

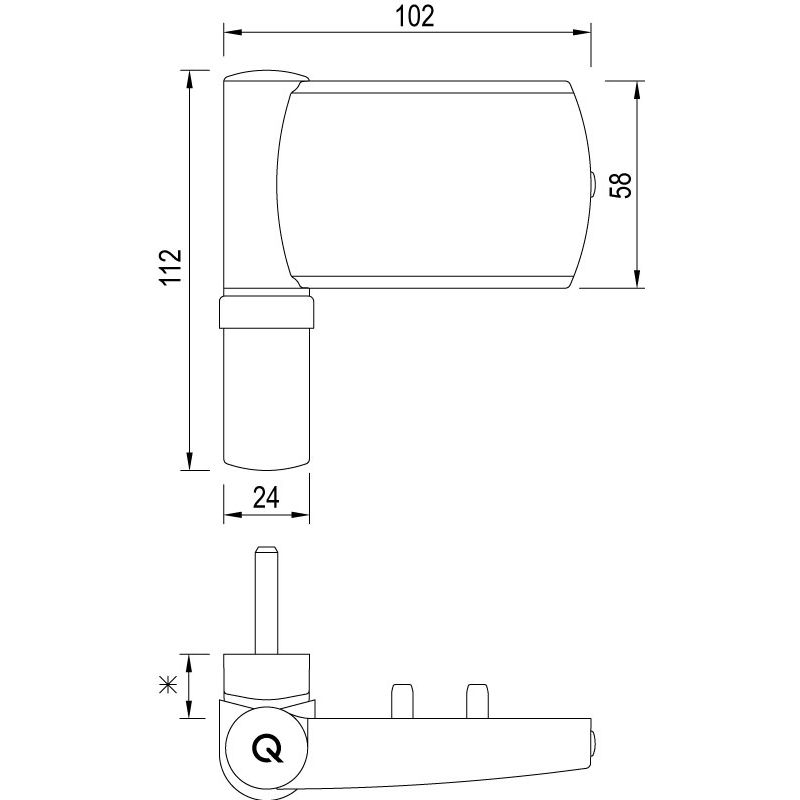

greenteQ Door hinge TB 120.ZD.K 16.5-19.5 p erlgold/1036 product photo BIGSKZ L
greenteQ Door hinge TB 120.ZD.K 16.5-19.5 p erlgold/1036 product photo BIGPIC L
greenteQ Door hinge TB 120.ZD.K 16.5-19.5 p erlgold/1036 product photo BIGSKZ L

greenteQ Door hinge TB 120.ZD.K 16.5-19.5 p erlgold/1036greenteQ Door hinge TB 120.ZD.K 16.5-19.5 p erlgold/1036

Product ID:3994101036
EACH
Packaging unit: 1ST
greenteQ Door hinge TB 120.ZD.K 16.5-19.5 p erlgold/1036
Manufacturer information:VBH Holding GmbH, Siemensstraße 38,DE70825, Korntal-Münchingen, Email: info@vbh.de
Adjustment option:
6-fold
Band height:
112 mm
direction:
DIN left/right
Door weight max.:
120 kg
Frame design:
Plastic
Hinge base width:
24 mm
Hinge type:
2-piece
Pin lock:
✓
PU:
1 Stk.
Rebate design:
counterfeit
Rebate thickness Screw-on door hinge:
16.5 - 19.5 mm
Roller Ø:
24 mm
Sash design:
Plastic
Type:
Screw-on tape
