Installation in the insulation level

Sustainable and environmentally friendly installation in the insulation level

The installation variant for double-shell masonry and ventilated facades - V-FIXX. The greenteQ system V-FIXX was developed for sustainable and environmentally friendly installation of windows and doors in the insulation layer of double-shell masonry and ventilated facades.

As a special feature, the greenteQ V-FIXX makes it possible to carry out installation quickly and economically, even with existing double-shell masonry and the resulting limited space. The greenteQ System V-FIXX profiles mounted on the building form a circumferential, highly thermally insulating frame. This improves the overall thermal performance - even with large insulation thicknesses in the facade. The windows are installed in the greenteQ system V-FIXX using the V-FIXX system plate and the V-FIXX drilling template as well as the associated window frame screws.

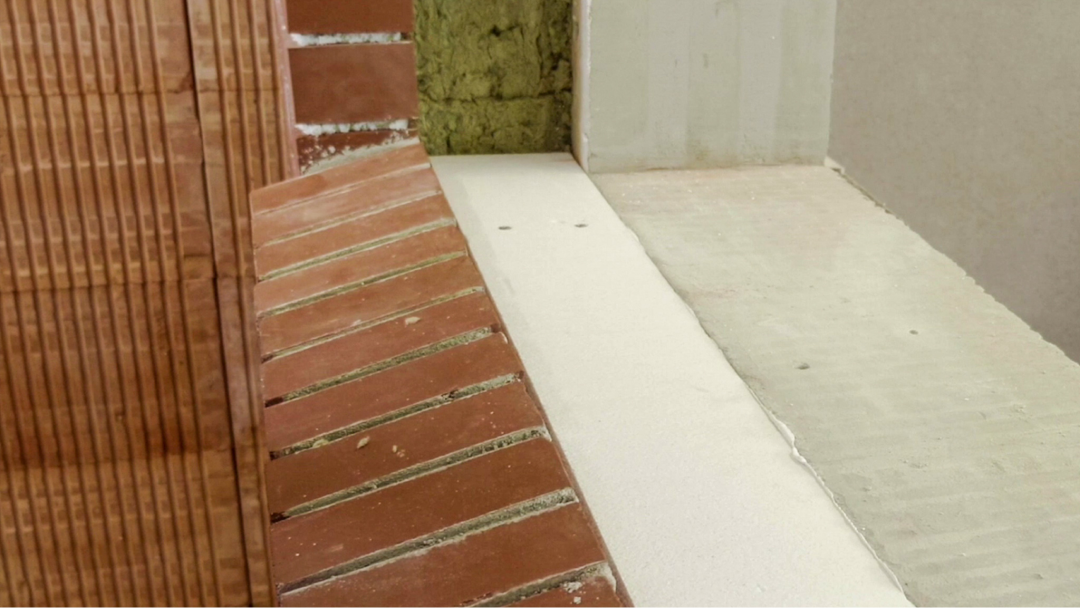

V-FIXX installation in the insulation level

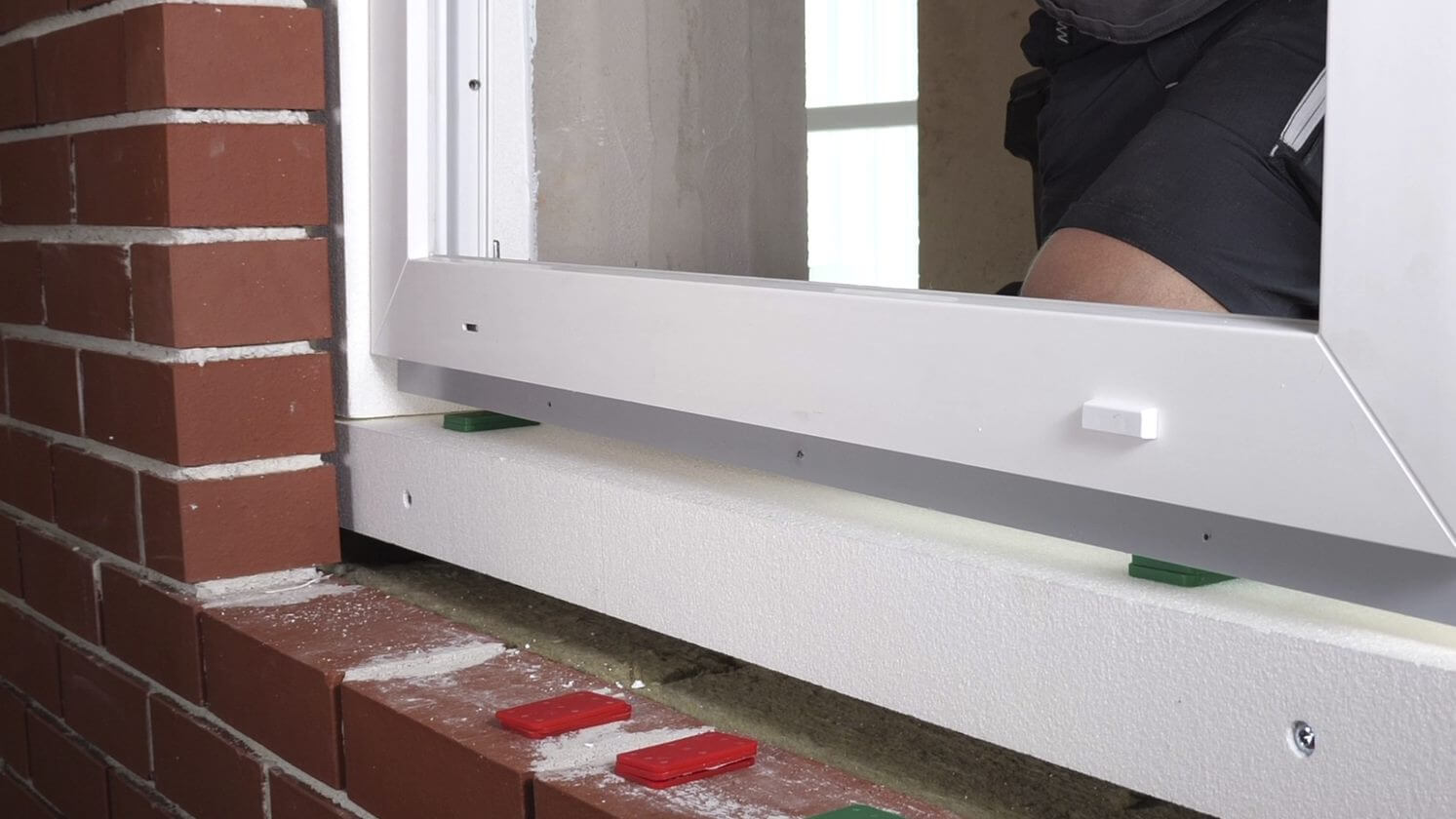

V-FIXX installation in the insulation level

The sealing of the connection joints is variable and can be adapted to the existing building situation and requirements. The greenteQ system V-FIXX can transfer the forces from the window construction as well as wind and live loads into the supporting structure. The profiles are glued and additionally fastened mechanically. Test reports from MPA Braunschweig are available to prove system security. The greenteQ SYSTEM V-FIXX was developed with sustainable construction in mind and makes it easier to replace windows later.

Why greenteQ V-FIXX?

All benefits at a glance

  • NO HEAT BRIDGE - NO CONDENSATION
  • Excellent thermal insulation and highly resilient
  • Insensitive to moisture and frost - no swelling or shrinking
  • No long-term change in dimension and strength
  • Low weight - easy handling
  • Recyclable and pure - meets all requirements for sustainable and environmentally friendly construction
  • Age-resistant, rot-resistant and rot-proof
  • Can be adjusted at any time on the construction site
  • Can be processed with standard tools
  • Offcuts can still be used
  • Subsequent installation possible
  • Easy installation thanks to diagonal screwing
  • Can be used optimally in new buildings as well as old buildings
  • Individually adaptable and plannable
  • Lots of variation options
  • Cost-optimized use of materials
greenteQ Logo

greenteQ V-FIXX

Our products

greenteQ Climate compliant profile 2250x60x80 gkks V-Fixx product photo BIGPIC L

greenteQ System V-FIXX-Profil

The greenteQ system V-FIXX was developed for the installation of windows and doors in the insulation level of double-skin masonry and ventilated facades.

greenteQ Hybrid assembly adhesive 290 ml white ß product photo BIGPIC L

greenteQ Hybrid assembly adhesive white

The greenteQ Hybrid assembly adhesive white is a high-quality, quick-curing, permanently elastic adhesive and sealant based on a hybrid polymer with a very high initial adhesion.

System plate V-Fixx product photo BIGPIC L

greenteQ system plate V-FIXX

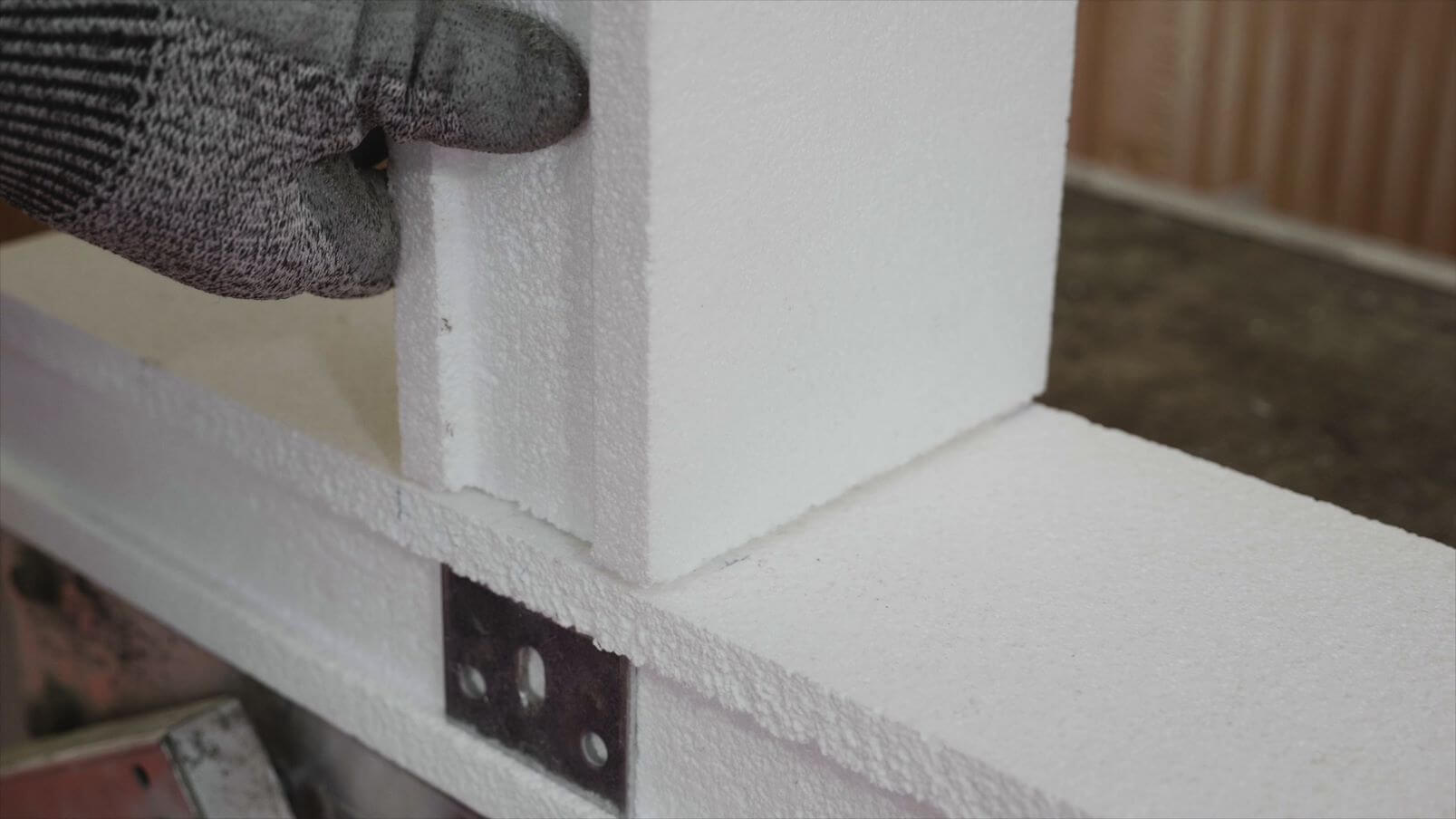

V-FIXX system plate for mechanical fastening to the structure.

greenteQ System screw TX flat head product photo BIGPIC L

greenteQ System screw TX flat head

greenteQ system screw with flat head for optimal fixation of window frames in conjunction with the greenteQ Climate Compliant, greenteQ Fix Dynamics systems. In addition, the greenteQ system screw has an RC2 test without backing blocks.

The products are available in other variants.
