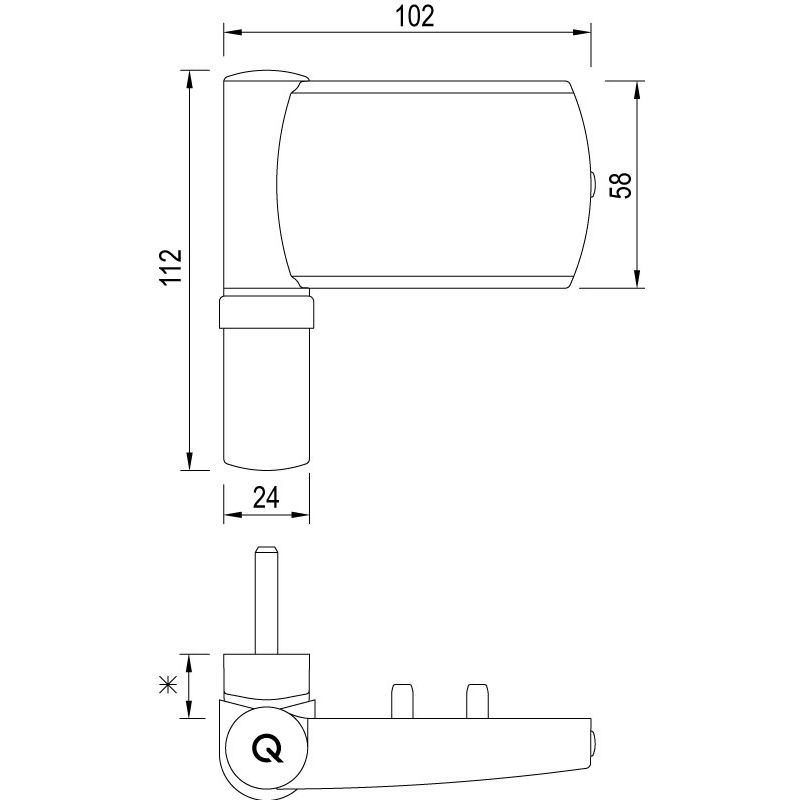

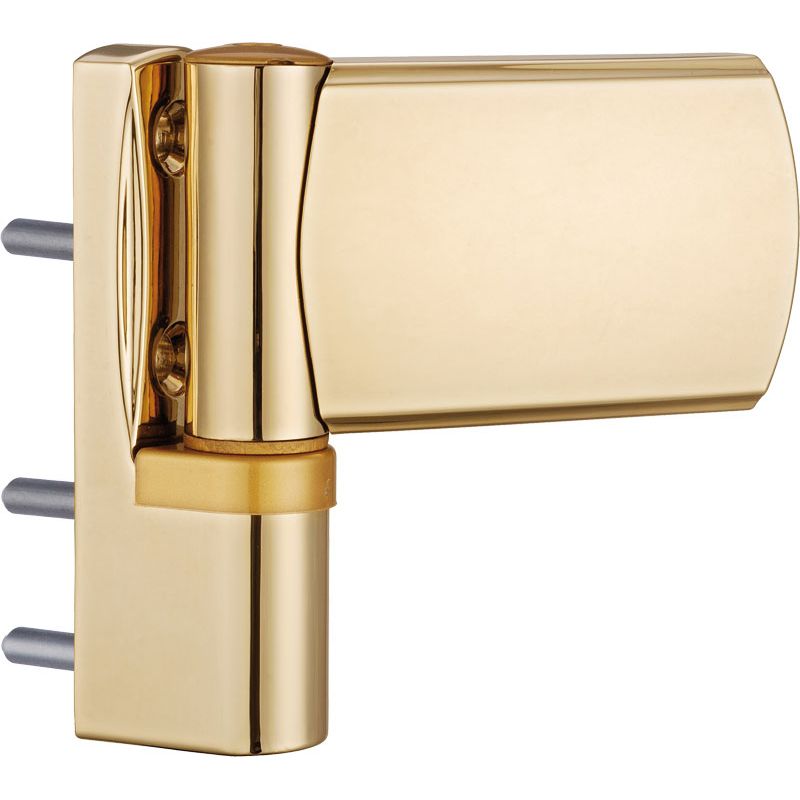

greenteQ Door hinge TB 120.ZD.K

Product ID:3994137110
EACH
Packaging unit: 1
Sales unit: EACH
With the new greenteQ TB 120.ZD.K door hinge, VBH presents a 3-dimensionally adjustable door hinge for PVC doors with a sash weight up to 120 kg for house doors which are subject to heavy stress and frequent use. The name TB 120.ZD.K stands for: door hinge - 120 kg - made of zinc diecasting - for PVC doors. The bands can be used for doors which open inwards or outwards, can be mounted on the left or right, and have a simple stop and easy adjustment. The greenteQ door hinges are available in white RAL 9016, brown RAL 8019, PVD chrome polished, PVD gold polished or silver (RAL 9006). The constructional moulding in zinc diecasting was designed to ensure maximum strength in the main areas of stress. The door hinge is certified in accordance with EN 1935.

Technical data:
  • Material: Zinc diecasting
  • Bearing capacity: 120 kg
  • Frame component: 19 mm exposure height
  • Lateral adjustment: +5 / -5 mm
  • Vertical adjustment: +4 / -1 mm
  • Closing pressure adjustment: +1.5 / -1.5 mm
  • Certified in accordance with: EN1935 | 4 I 7 I 6 I 0 I 1 I 4 I 0 I 13 |

For direct mounting, please use a greenteQ drilling jig made of aluminium or polyamide, with hardened steel bushings
Additional information:
-
Adjustment option:
6-fold
Band height:
112 mm
Centre distance frame:
- mm
Classification:
| 4 | 7 | 6 | 0 | 1 | 4 | 0 | 13 |
Colour designation:
PVD gold polished
Designation:
TB120
direction:
DIN left/right
Door weight max.:
120 kg
EANCode:
4035142159060
Fitting groove Roller door hinge:
-
Hinge base width:
24 mm
Hinge type:
2-piece
Order Unit:
EACH
Overlap:
- °
Overlap Inclination of sash profile:
- °
Pin lock:
-
PU:
1 Stk.
Rebate thickness Screw-on door hinge:
22.5 - 25.5 mm
Roller Ø:
24 mm
Sash centre distance:
- mm
Type:
Screw-on tape
