  6. / greenteQ DG48.S216.AL.NS.IN PZ 92 white/9 16
greenteQ DG48.S216.AL.NS.IN PZ 92 white/9 16 Produktbild BIGPIC L

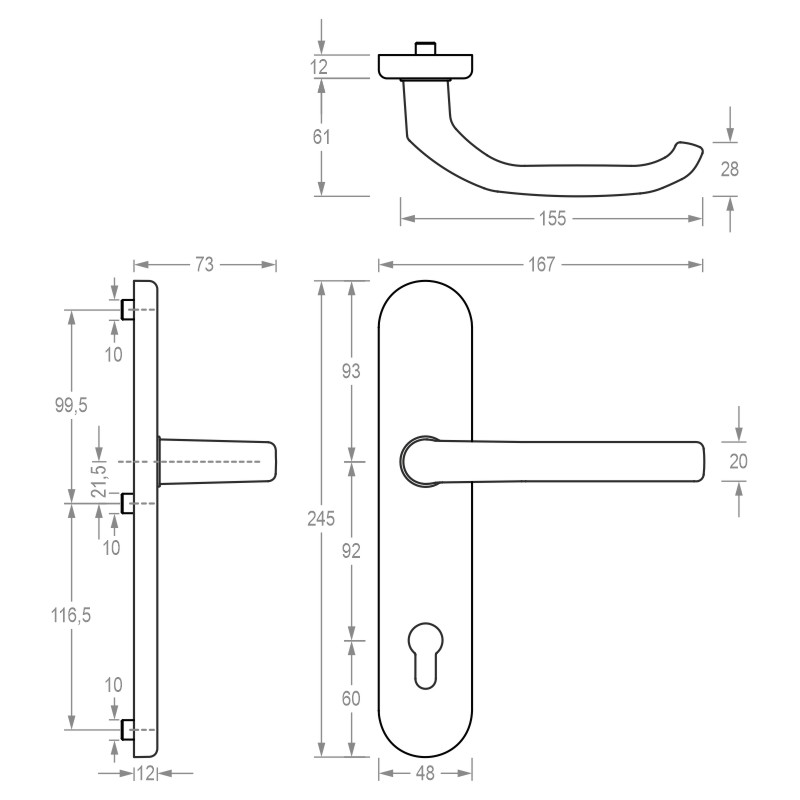

greenteQ DG48.S216.AL.NS.IN PZ 92 white/9 16 Produktbild BIGSKZ L
greenteQ DG48.S216.AL.NS.IN PZ 92 white/9 16 Produktbild BIGPIC L
greenteQ DG48.S216.AL.NS.IN PZ 92 white/9 16 Produktbild BIGSKZ L

greenteQ DG48.S216.AL.NS.IN PZ 92 white/9 16greenteQ DG48.S216.AL.NS.IN PZ 92 white/9 16

Artikelnummer:2172720091
GRT
Verpackungseinheit: 1GRT
greenteQ DG48.S216.AL.NS.IN PZ 92 white/9 16
Manufacturer information:VBH Holding GmbH, Siemensstraße 38,DE70825, Korntal-Münchingen, Email: info@vbh.de
02 Shade:
white 9016
direction:
DIN left/right
Distance (spacing):
92 mm
Escutcheon/rosette Outer thickness:
12 mm
Fixed/rotatable bearing:
-
Form:
Long shield, round
Handle Material:
Aluminium
Height of plate:
245 mm
Hold-open spring:
yes
Keyhole:
Profile cylinders
material:
Aluminium
Mounting type:
Invisible on one side
Support cam:
-
Width of plate:
48 mm
