  5. / greenteQ Door hinge TB 100.ZD.K 18.5-21.5 b raun/8019

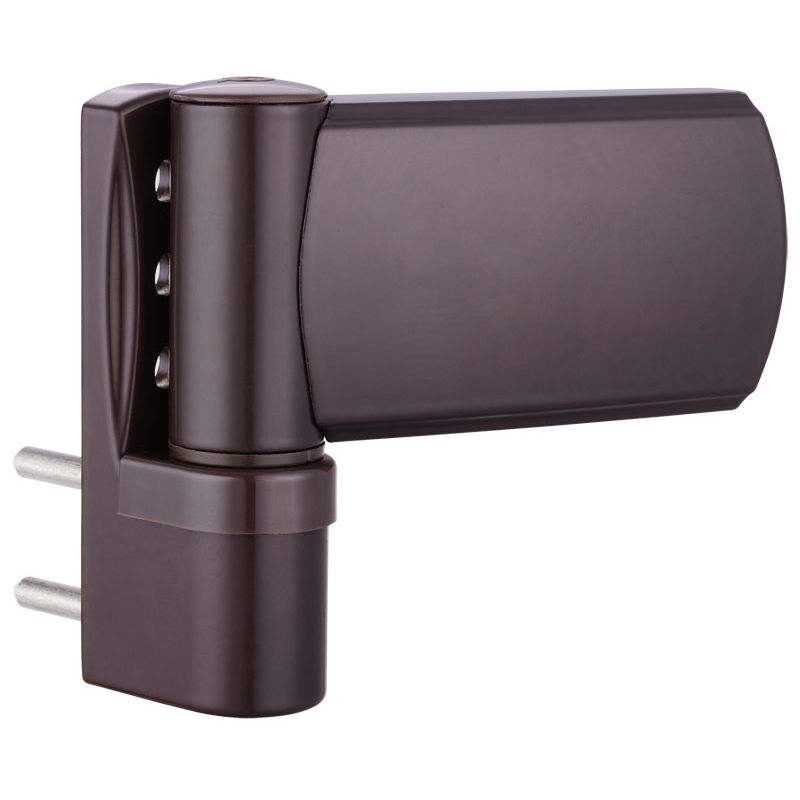

greenteQ Door hinge TB 100.ZD.K 18.5-21.5 b raun/8019 product photo BIGPIC L

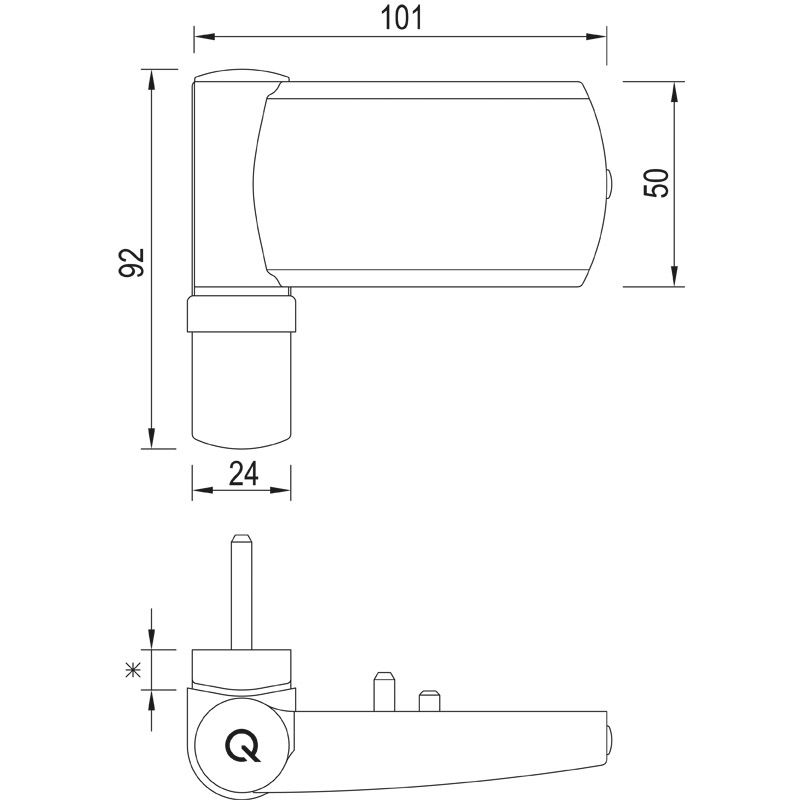

greenteQ Door hinge TB 100.ZD.K 18.5-21.5 b raun/8019 product photo BIGSKZ L
greenteQ Door hinge TB 100.ZD.K 18.5-21.5 b raun/8019 product photo BIGPIC L
greenteQ Door hinge TB 100.ZD.K 18.5-21.5 b raun/8019 product photo BIGSKZ L

greenteQ Door hinge TB 100.ZD.K 18.5-21.5 b raun/8019greenteQ Door hinge TB 100.ZD.K 18.5-21.5 b raun/8019

Product ID:3916470900
Rebate thickness Screw-on door hinge
13,5 - 16,5 mm 18,5 - 21,5 mm 13.5 - 16.5 mm 18.5 - 21.5 mm
PU
1 Stk. 24 Stk. - available in other combination
EACH
Packaging unit: 1ST
greenteQ Door hinge TB 100.ZD.K 18.5-21.5 b raun/8019
Manufacturer information:VBH Holding GmbH, Siemensstraße 38,DE70825, Korntal-Münchingen, Email: info@vbh.de
Adjustment option:
6-fold
Band height:
92 mm
direction:
DIN left/right
Door weight max.:
100 kg
Frame design:
Plastic
Hinge type:
2-piece
Pin lock:
✓
PU:
1 Stk.
Rebate design:
counterfeit
Rebate thickness Screw-on door hinge:
18,5 - 21,5 mm
Roller Ø:
24 mm
Sash design:
Plastic
Type:
Screw-on tape
