Installation in the insulation level
Sustainable and environmentally friendly installation in the insulation level

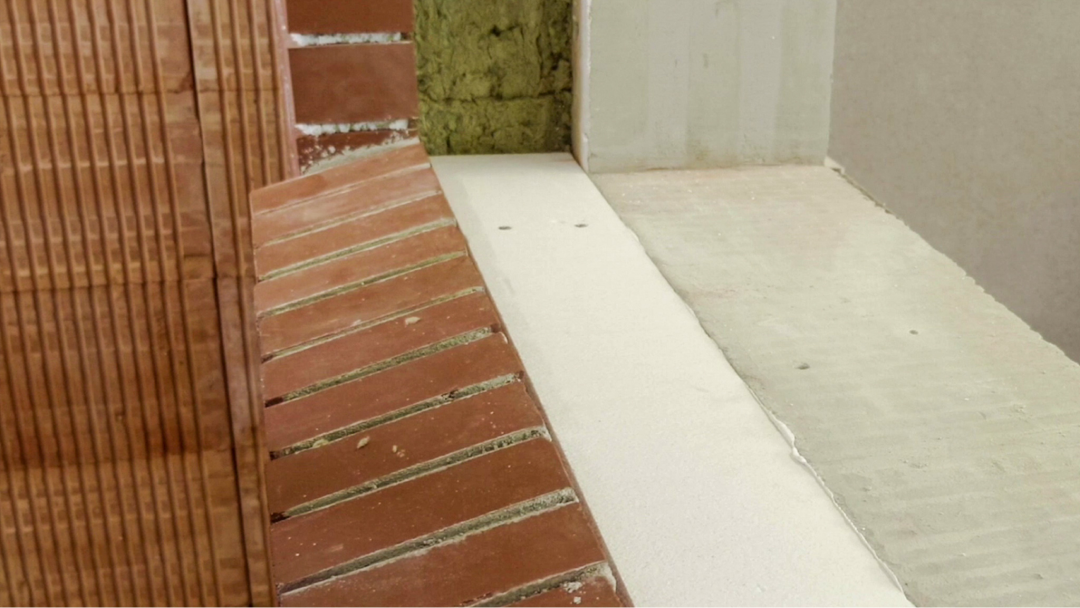

The installation variant for double-shell masonry and ventilated facades - V-FIXX. The greenteQ system V-FIXX was developed for sustainable and environmentally friendly installation of windows and doors in the insulation layer of double-shell masonry and ventilated facades.

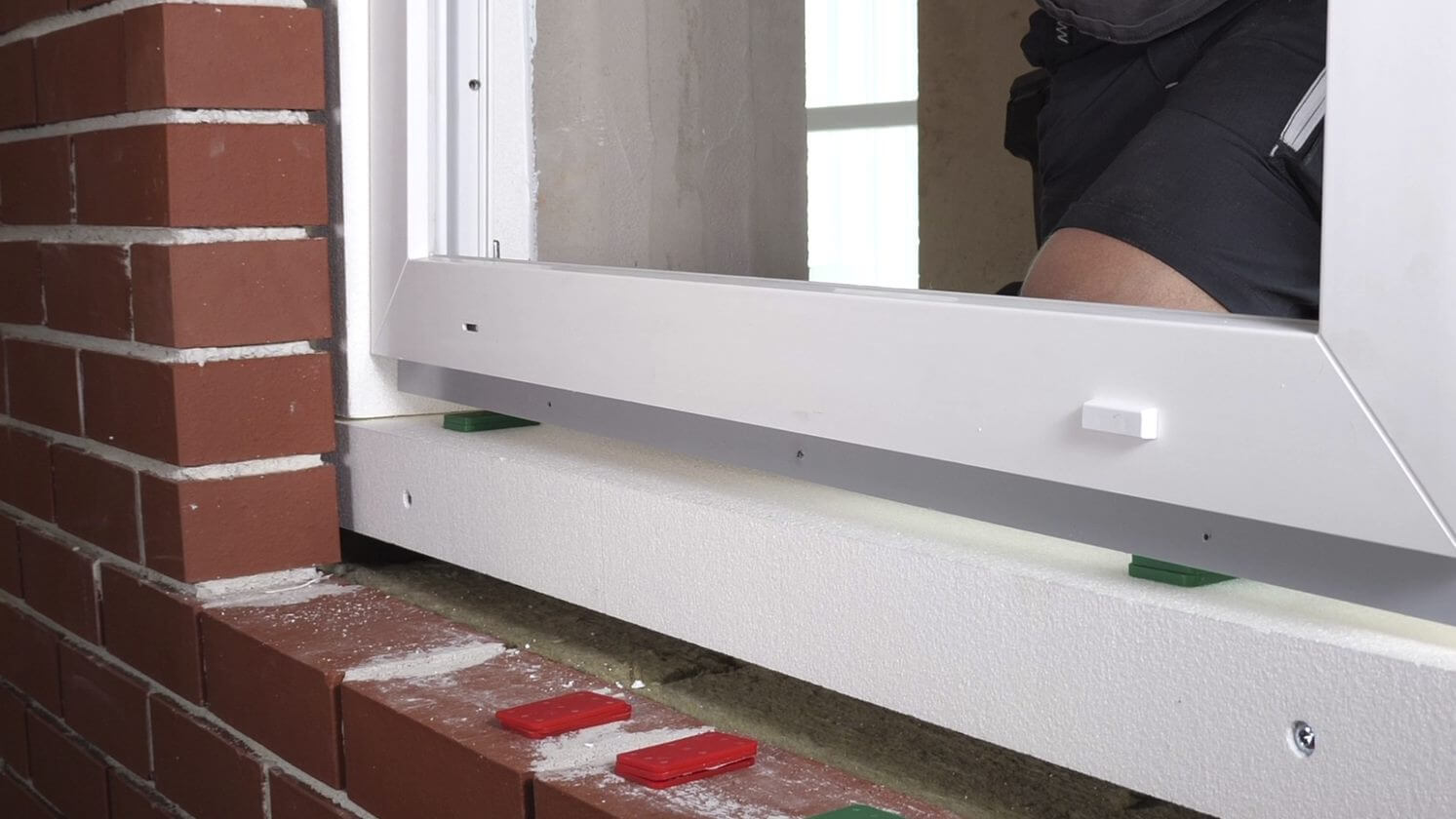

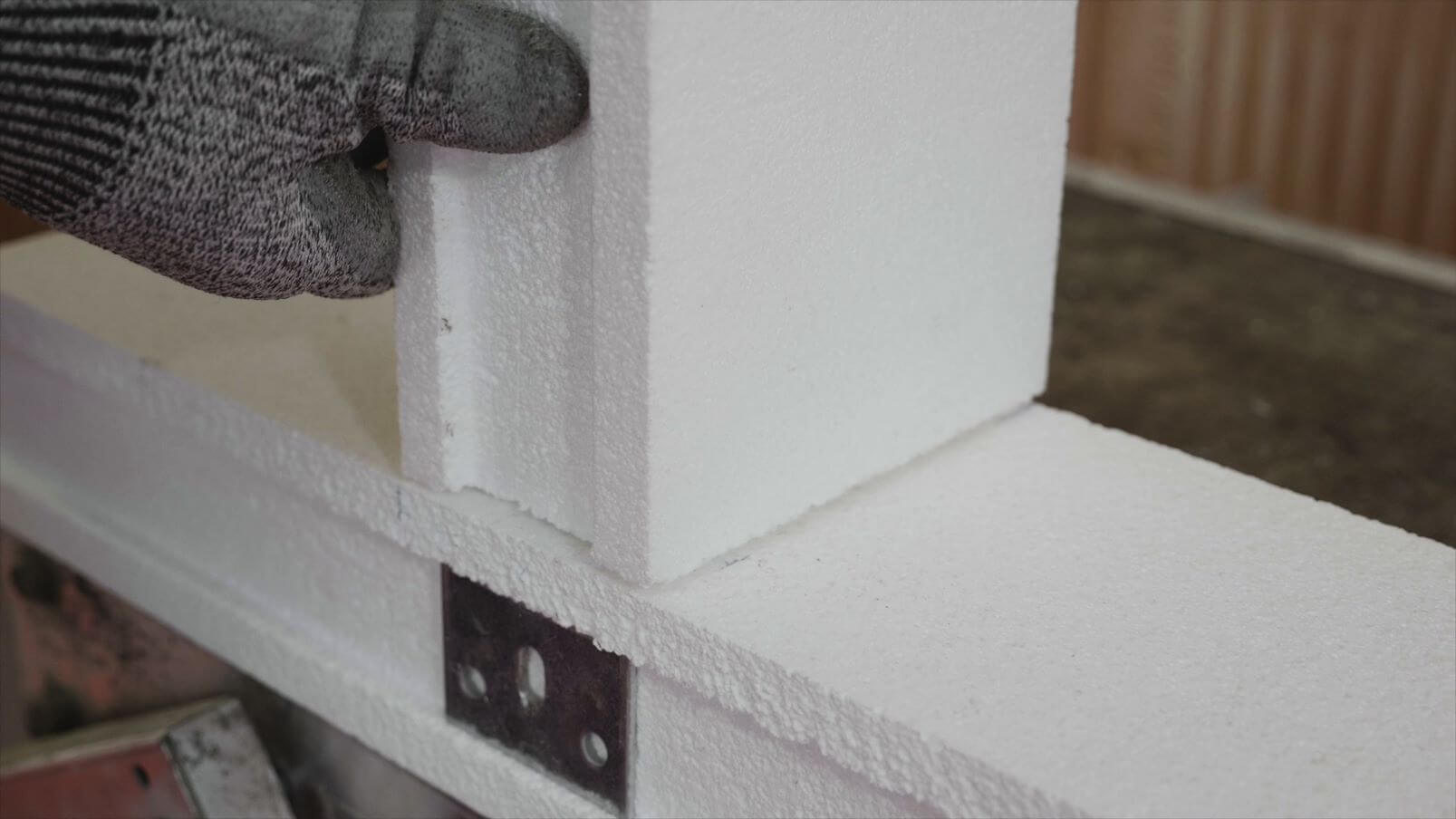

As a special feature, the greenteQ V-FIXX makes it possible to carry out installation quickly and economically, even with existing double-shell masonry and the resulting limited space. The greenteQ System V-FIXX profiles mounted on the building form a circumferential, highly thermally insulating frame. This improves the overall thermal performance - even with large insulation thicknesses in the facade. The windows are installed in the greenteQ system V-FIXX using the V-FIXX system plate and the V-FIXX drilling template as well as the associated window frame screws.
The sealing of the connection joints is variable and can be adapted to the existing building situation and requirements. The greenteQ system V-FIXX can transfer the forces from the window construction as well as wind and live loads into the supporting structure. The profiles are glued and additionally fastened mechanically. Test reports from MPA Braunschweig are available to prove system security. The greenteQ SYSTEM V-FIXX was developed with sustainable construction in mind and makes it easier to replace windows later.
